Welding shields, Welding helmets

Welding helmet with arched automatic dimming welding glasses. The helmet is specially designed for advanced TIG welding and sets a new standard for sharpness on welding glasses. Also suitable for MMA, MIG/MAG welding and plasma cutting.
With Curved Glass technology, the welding glass follows the curvature of the head and is more in line with your peripheral vision. The curved glass enables a helmet with a narrower profile and wider field of vision. Visible surface of 150x76 mm. The combination of the curved welding glass and a narrower helmet reduces reflections and other distracting glare inside the helmet.
The design of the helmet means that the center of gravity is close to the center of the head, which provides better weight distribution. Innovative design for the ventilation of exhaled air to reduce heat and moisture, providing high comfort.
Welding glass with advanced electronics with four arc sensors, the welding glass switches reliably even at very low TIG settings (1 amp), which meets TIG+ standard according to ISO 16321. Variable density 8-12 and light density 2.5. Turnover time from light to dark in 0.1 ms. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Easy-to-use control panel, where you manage the functions easily; Bluetooth ON, Density Lock, Delay, Density 8-12 (+/-) and Sensitivity (+/-). The most used controls (density and sensitivity) are located where they are easiest to access, in the lower left and right corners. Powered by 1 pc 3 V Lithium batteries (CR2450).
The welding glass is also equipped with Bluetooth function, easily pairs with smartphone. With the 3M Connected Equipment app there is access to additional functions;
Program up to ten memory settings (dark density, sensitivity, delay, etc.).
Easy to keep a log in the app of the maintenance of your welding helmet.
Statistical information directly: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off).
Access the user manual and accessory lists.
Weight : 535 g.
Complies with EN 379:2003+AI:2009, EN 166:F, EN 175:F, TIG+ standard according to ISO 16321.

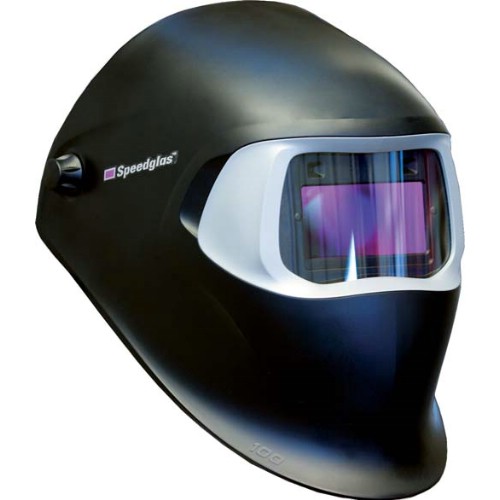

Speedglas 100V is an easy-to-use and comfortable welding visor with simpler functions. The automatic welding glass has five degrees of tightness in the dark mode, DIN 8 to 12, and has three sensitivity modes to ensure reliable detection of the welding arc. Speedglas 100 is perfect for welders who mainly weld with electrode, MIG/MAG and some types of TIG and who do not weld all day. Speedglas 100V is available in black standard design and in graphic printing with a number of different motifs. The graphics are made in a very durable, varnished lamination that is easy to wipe down and keep clean. The welding glass is powered by 2 CR2032 batteries.
Conforms to EN 379.

Comfortable and protective welding helmet. Automatic dimming function and a patented exhalation valve to get the exhaled air out more efficiently and quickly, which means that fogging on the welding glass is reduced. It also reduces the risk of increased heat, humidity, carbon dioxide content and foul air inside the visor. With the delay function, the user can set the desired cover time from dark to light mode. Arc detection sensitivity can be set to provide the most reliable coverage for a range of welding processes, amperages and situations. The welding glass can also be locked at the desired degree of tightness, so that it functions as a passive welding glass either in the light position for grinding or in one of the dark positions. The welding glass is powered by 2 batteries CR2032.
SW = Side window.
Welding glass 9100V - Viewing surface 45x93 mm.
Welding glass 9100X - Viewing surface 54x107 mm.
Welding glass 9100XX - Viewing surface 73x107 mm.
Welding glass 9100XXi - External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm.
Conforms to EN 379.

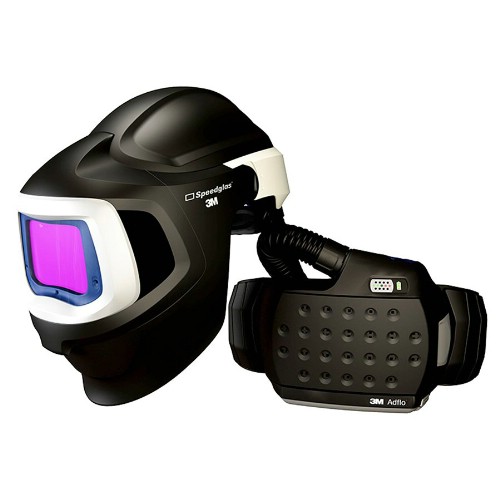

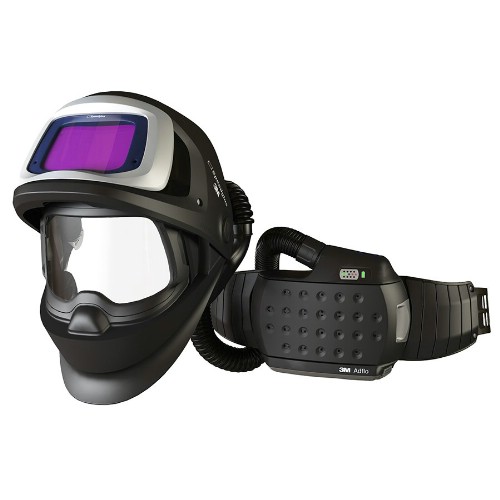

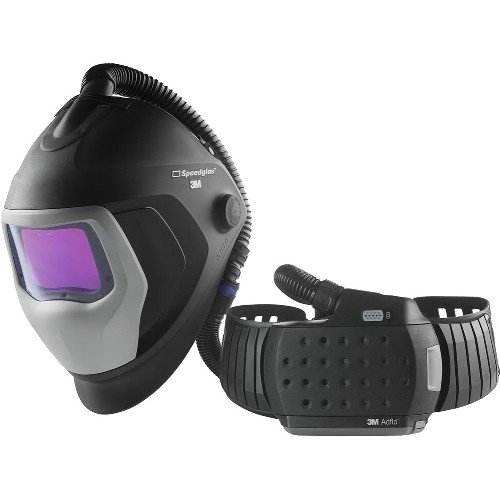

Welding helmet with automatically dimming welding glasses and Adflo fan-assisted breathing protection. Slim profile and ergonomic design. Comfortable headband with steering wheel adjustment. Adflo fan unit provides a continuous air flow, protects breathing and increases comfort throughout the working day. Integrated air channel provides airflow to the entire helmet. Quick Release Swivel makes the air hose easy to put in place with one hand. Stst field of view with side window, degree of tightness 5. Welding glass with variable degree of tightness 5, 8, 9-13 for most types of arc welding. Possibility to lock all density levels, e.g. in the bright position density level 3 when sanding. Delay function to set the dark-to-light opening time. Switching time (light-dark) 0.1 ms. Comfort mode for spot welding minimizes eye strain. External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm. With the right type of filter, the Adflo respirator protects you effectively against both particles and gases. Gas filter sold separately. Supplied complete with welding helmet, welding glasses 9100XXi, 2 batteries CR2032, Adflo fan unit incl. air hose, Li-Ion battery, charger, particle filter and bag.
Conforms to EN 379, EN 175, EN 166, EN 12941.

(HTML text not available)

Welding helmet 100-QR with protective helmet H-701 and welding glass 100V (H783520). Designed to fit many of the industry's most popular safety helmets. Variable shading 8-12 (100V). Possible to lock the light mode, e.g. when grinding. Delay function to set dark-to-light opening time. Three sensitivity levels. Interior with flexible latch for precise tightening. Compatible with most 3M filtering half masks for welding. With the QR rail mounted, you can easily remove the welding visor and keep your safety helmet on while performing tasks other than welding. The welding glass is powered by 2 batteries CR2032.

With passive welding glass, the helmet offers a compact and light face protection for easier welding work. The model also has well-proportioned shell dimensions, flip-up welding glass with setting for viewing position (Gap View) and the Com Flex headband.
Supplied with passive welding glass Din 11.
Weight: 470 g without accessories.

The welding visor Beta e90A SH is designed to provide reliable protection for the entire face when welding. It is compatible with safety helmets from Kask, Petzl and Zekler, and can be quickly mounted on the hearing protection holder of the safety helmet. The visor is suitable for various welding methods such as MIG/MAG, TIG, MMA, as well as plasma welding and grinding. The visor also has a light but robust construction, a comfortable headband, and a flip-up welding glass cassette with three fixed positions for different areas of use. The cassette is powered by a solar cell, 2 x CR2032 (replaceable).
Weight: 505 g
Operating temperature: -5 - +55 °C
Relative humidity: <80% Rh
Welding glass: SA 60B
Field of view size: 100 x 60 mm
Welding glass dimensions: 110 x 90 mm
Dirty degree: 9-13 ADF, light status 3.5 ADF
CE Classification: 1/1/1/1
Recovery time: 0.1 ms
LiFE+ Color: Yes
Grinding function: Yes

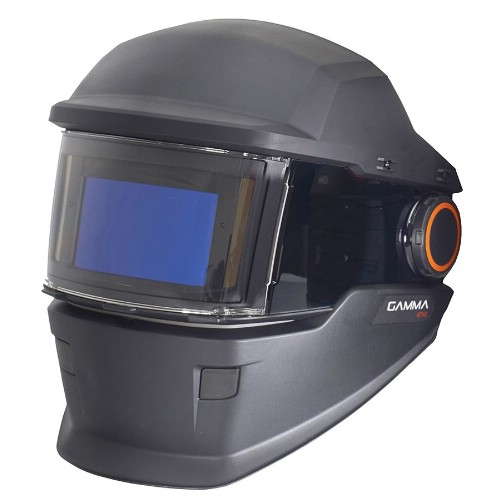

Welding helmet for use in work environments where respiratory protection is not required. Provides maximum visibility and safety during welding, grinding and inspection processes. With automatic dimming welding glass SA 60, with clear vision and large field of view. The LiFE+ Color ADF technology provides a clearer view and with the control buttons it is easy to set it without removing the helmet. Density 5, 8, 9-13. Folding welding visor that provides a large grinding visor with 170° visibility over the work surface. Equipped with a setting for GapView (viewing mode) so that under the welding visor you get a narrow gap of 15 mm through which you have a clear view of the work area. Ideal for positioning the workpiece and stapling before welding. Axis adjustment for field of view perspective setting. Comfortable and flexible headband ComFlex that fits perfectly for different head shapes and needs. Provides even weight distribution and reduces pressure on sensitive parts of the head, minimizing fatigue and headaches due to the helmet.

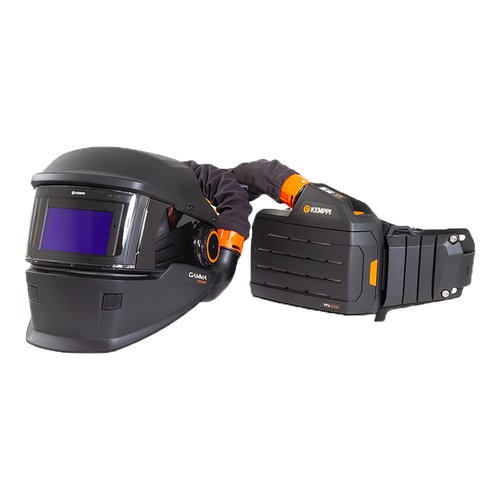

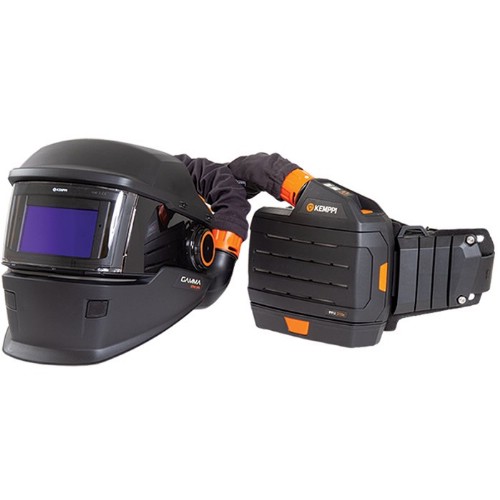

Complete package with welding helmet Gamma GTH3 SFA with automatic dimming welding glasses SA 60 and battery-powered respirator PFU 210e. Welding glass with clear view and large viewing area, density 5, 8, 9-13. The LiFE+ Color ADF technology provides a clearer view and with the control buttons it is easy to set it without removing the helmet. Helmet with fold-up welding visor that provides a large grinding visor with 170° visibility over the work surface. Equipped with a setting for GapView (viewing mode) so that under the welding visor you get a narrow gap of 15 mm through which you have a clear view of the work area. Axis adjustment for field of view perspective setting. Comfortable and flexible headband ComFlex that fits perfectly for different head shapes and needs. Battery-powered filter unit PFU 210e that filters the ambient air and blows the purified air into the breathing zone. Selectable airflow of 160 l/min or 210 l/min and indicator lights for battery and filter status. Easy filter replacement. The filter unit can be supplemented with a gas filter and an odor filter.
Contents:
Welding helmet Gamma GTH3 SFA with automatic dimming welding glass SA 60, battery-powered respirator PFU 210e, air hose, pre-filter, particle filter, 3.2 Ah Li -Ion battery, battery charger, flow meter and leather belt.
