Skärande- och hållande verktyg

Track design: Right, normal spiral, wide tracks.
Tip angle: 118° Special tip geometry (DORMER P.S. Point), provides better positioning accuracy.
Surface treatment: Blank body, TiN-coated cutting part.
Area of ??use: For normal drilling work.
DIN 338 RN / BS 328 / ISO 235.
* = Self-service packed.

Track design: Right, normal spiral.
Tip angle: 118° < 2.3 mm and > 13 mm 135° 2.3 mm - 13 mm. Cross-pointed.
Surface treatment: Glossy: < 1 mm. Steam run > = 1 mm.
Area of ??use: For normal drilling work in steel, stainless steel and cast iron. Also suitable for use in handheld machines.
DIN 1897 RN / BS 328 / ISO 235

Drill sets A095 with drills type A002.
Groove design: Right, normal spiral, wide grooves.
Point angle: 118° special tip geometry (Dormer P.S. Point), gives better positional accuracy.
Surface treatment: Glossy body, TiN-coated cutting part.
Area of ??use: For normal drilling work.
DIN 338 RN / BS 328 / ISO 235

4-edged hammer drill with SDS-Plus attachment. Solid HM tip with precise centering on hard and smooth surfaces. Four symmetrical 90° cutting edges guarantee round holes and reduce the risk of jamming when drilling in rebar. Large inlet channels ensure optimal removal of the drilling dust. Four symmetrical input channels provide low vibrations and ensure low and even track wear. Suitable for brick, concrete, reinforced concrete and natural stone.
Diameter Ø 18 mm > carbide tip.
Drill with working length 400-940 mm: Pre-drill with a shorter drill of the same diameter.

(HTML text not available)

Impact-resistant drill with 1/4" machine bit attachment optimized for impact screwdrivers. 135° angle and four cutting edges. Titanium coating distributes the heat better and makes the drill suitable for high speed. For drilling in steel, metals and sheet metal profiles.

Holder for Milwaukee hole saws.

Tolerances: 6H.
Cutting chamfer: Form C (Step taper, 2-3 threads chamfered).
Groove design: Chip-pulling right-hand spiral 45 °.
Surface treatment: Steam run.
Application area: For threading bottom holes.
ISO 529.

Adapter for hole saw holder Presact QuickChange PS1022Q-01.
Suitable for hole saws PS1010 (14-30 mm).
Supplied in a package of 3 washers and 3 adapters.

Needles for holders GFIL-L, GFML-L, GGIR/L and GG.R/L.

Bi-metal band saw blades for production production of medium to large workpieces from various materials, especially alloy and stainless steel. Improved tooth egg in high-speed steel provides a combination of higher degree of hardness and greater toughness. Less vibration, less heat generation and better wear resistance. Variable tooth geometry designed to maximize cutting performance. Superior surface finish generates less friction and vibration for better performance. Precision reduced teeth for a smooth surface finish. Maximum performance with specially designed tooth design. With M42 tooth tips that last a long time. Special design with a combination of sharp tooth tips for easy penetration of the workpiece.
Teeth type PRX: Robust tooth design, very durable and wear-resistant, 10° rake angle, except on 4/6 and 5/8 TPI, where this design has an 8° rake angle.

Bi-metal band saw blade. High speed steel teeth with 8% cobalt for fast cutting speed and long service life. Extremely hard and smooth teeth plasma welded to a strong and durable back. High-speed sawing of aluminum, angle iron, bronze, brass, copper, galvanized pipes and soft iron. Harder steels including stainless, chrome, tungsten plus other difficult materials are cut at low speed.

Bi-metal band saw blade. High speed steel teeth with 8% cobalt. Extra long service life. Precision-shaped teeth that provide fast, clean cuts. Optimized for battery-powered band saws. Suitable for cutting angle iron, galvanized pipes and even harder steels such as cast iron and stainless steel.

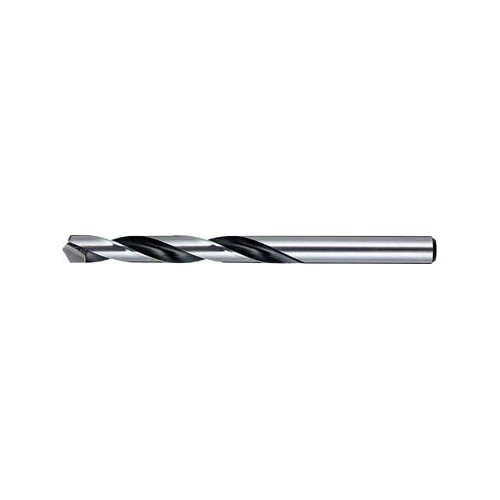

Diamond ground carbide drill tip with two cutting edges. Cylindrical bracket. For drilling in brick, tile, marble, concrete, plaster, slate, granite, hollow wall blocks, ceramic tiles, clinker and all kinds of natural stone.

Track design: Right, normal spiral.
Point angle: 135° cross point. 118° tip up to 2.9 mm.
Surface treatment: TiN (Titanium nitride). Blank under 2.0 mm.
Area of ??use: For normal drilling work.
DIN 1897.

Groove design: Right, normal spiral.
Tip angle: 118°.
Surface treatment Glossy: < 1 mm, 3/64, No 60.
Surface treatment Steam run: 1 mm, 3/64, No 60 and larger.
Area of ??use: For normal drilling work.
DIN 338 RN / BS 328 / ISO 235.

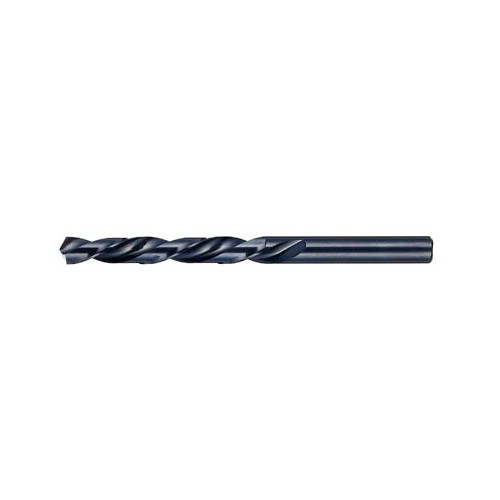

Groove design: Left, normal spiral.
Tip angle: 118°, left cutting.
Surface treatment: Glossy under 3 mm. Steam hardened 3 mm and larger.
Area of ??use: For normal drilling work in steel, cast iron etc. in left-hand machines.
DIN 338 LN / BS328 / ISO 235.

Track design: Right, large spiral angle.
Tip angle: 135° < 1.5mm 135° > = 1.5 mm. Cross-tipped.
Surface treatment: Steam treated.
Application: For drilling in austenitic stainless acid and heat-resistant steels.
DIN 338 RW / BS 328 / ISO 235.

Groove design: Right, normal spiral.
Tip angle: 118°, 14 mm and larger, pointed.
Surface treatment: Glossy: < ; 1 mm. Steam Run: > = 1 mm.
Area of ??use: For drilling deep holes in steel, cast iron, etc.
DIN 340 RN / BS 328 / ISO 494

Track design: Right, normal spiral.
Tip angle: 118° up to 1.5 mm, 135° 1.5 mm and larger. Cross-pointed.
Surface treatment: Yellow-coated.
Area of ??use: For drilling in CNC and automatic machines. For high-strength and high-alloy steels 1200 N/mm².
DIN 1897 RN / BS 328 / ISO 235

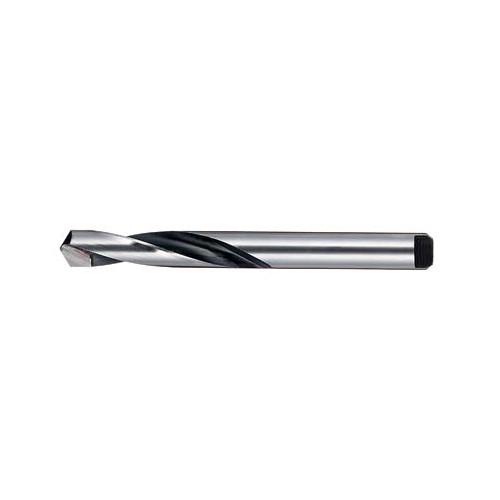

Groove design: Right, normal spiral, thin conical core, no guide edges.
Point angle: 120°.
Surface treatment: Steamed.< BR>Area of ??use: For drilling in thin sheet metal and thin material sections up to 1.25 x D. The self-centering tip produces accurately round holes.
Used as pop rivet drill.
Total length according to DIN 1897 RN / BS328 / ISO 235

Track design: Right, normal spiral.
Tip angle: 118°.
Surface treatment: Glossy: < 2.2 mm. Steam run: > = 2.5 mm.
Area of ??use: For normal drilling work in steel, cast iron etc.
ISO 3292 / BS 328

(HTML text not available)

Track design: Right, normal spiral.
Tip angle: 118°.
Surface treatment: Steam run.
Area of ??use: For use in light drilling work. Fracture of the bracket can occur if the drill is subjected to lateral forces or too high feed pressure.

Track design: Right, large spiral angle.
Tip angle: 130° specially pointed tip. Convex main edges.
Surface treatment: TiN (Titanium nitride).
Area of ??use: Mainly in CNC machines where high productivity and accurate holes are sought. Hole depth up to 4 x the diameter.
DIN 338 R / BS 328 / ISO 235.

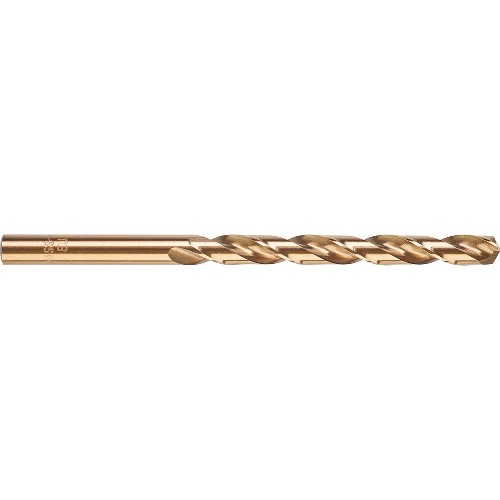

Tool material: HSS-E
Slot design: Right
Point angle: 130° for excellent centering
Surface treatment: Bronze
Area of ??use: Extra short drill made of very high quality cobalt-alloyed HSS-E steel. For drilling in stainless steel, but also works in most other materials. DIN 1897.

Track design: Right, normal helix, reinforced core.
Point angle: 118° drill tip up to 0.95mm, 135° four-facet ground tip 1.00 mm up to 1.40 mm 135° cross lace from 1.50 mm and up. (Cross tip geometry according to NAS 907 Aerospace Specification - drill tip of type P3.)
Surface treatment: Yellow run.
Area of ??use: Suitable for use when high frictional heat is generated when drilling in for example high-strength hard materials, especially in the aerospace industry.
DIN 338 RN / BS 328 / ISO 235

(HTML text not available)

(HTML text not available)

(HTML text not available)

Drill HM with internal cooling channel.
Slot design: Right, normal spiral, internal cooling.
Drilling depth: Tip angle: 140°
Mounting: DIN 6535HA without clamping plate = Cyl. Shank
Carbide type: K10 Micrograin
Surface treatment: TiAIN
Area of ??use: Highly productive carbide drills with cooling channels for processing in most materials .
DIN 6537L

(HTML text not available)

Twist drill.
Material: HSS/M2
Surface treatment: Glossy, TIN-coated cutting part.
Slot version: Right , normal spiral, wide grooves, with cross tip for accurate centering.
Tip angle: 118°.
Area of ??use: For normal drilling work.
Dimensions according to DIN 338 .

Drill with an optimized step drill tip to avoid pre-drilling. With optimized center and step drill tip to avoid pre-drilling, grips directly when drilling in rounded surfaces such as pipes. Ideal for drilling in ferrous and non-ferrous metal sheets, profiles and pipes, copper, brass, aluminium, stainless steel and plastic. Bracket with 3 flat surfaces that provides a secure grip in the drill chuck and ensures maximum transmission of torque.
Material: HSS/M2
Slot design: Right normal spiral  ;
Tip angle: 118°
Area of ??use: For normal drilling work
Dimensions according to DIN 338

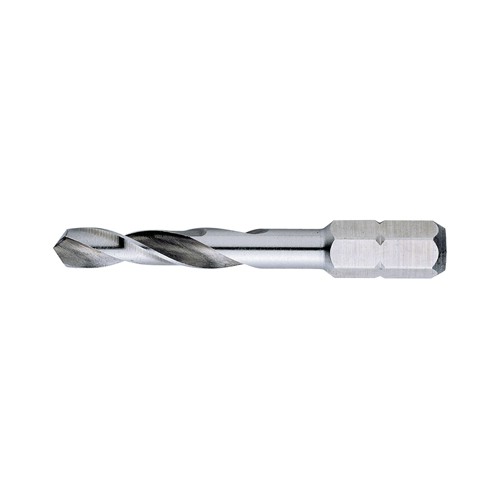

Twist drill with 1/4" quick chuck attachment.
Material: HSS/M2
Surface treatment: TiN-coated, cutting part.
Slot design: Right, normal spiral, wide grooves.
Tip angle: 118°
Area of ??use: For normal drilling work, for use with impact screwdrivers.
Dimensions according to DIN 388.

Twist drill with cross point.
Material: HSS/4341
Surface treatment: Glossy
Slot design: Right, normal spiral.
Tip angle: 118°
Area of ??use: For normal drilling work
Dimensions according to DIN 338

Twist drill, extra long, with round attachment.
Material: HSS/M2
Surface treatment: Glossy
Slot design: Right , normal spiral
Tip angle: 118°
Area of ??use: For normal drilling work

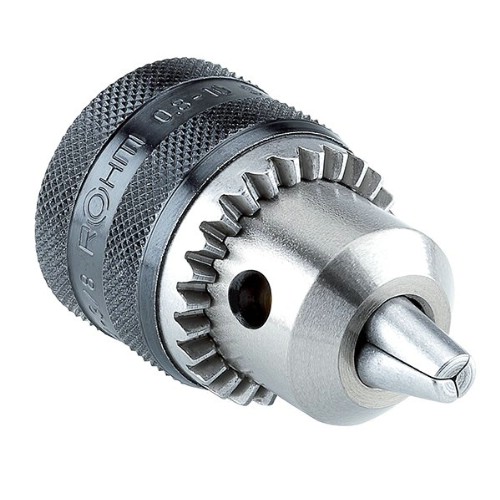

Key chuck with 3/4" Weldon attachment. Fits Fein magnetic drill KBU 110-4 M, KBU 35 MQW, KBU 35 QW, KBU 35-2 QW, AKBU 35 PMQW Select, KBE 65-2 M, KBE 50-2 M, KBE 50-2 and KBE 35.

Quick chuck specially developed for drills with spindle stops. Plastic sleeve. A sleeve without retaining ring. Quick tool change without a chuck key. Hole with locking screw. With hexagon bracket that simplifies assembly and disassembly. Suitable for both right- and left-hand drive machines. Not impact drill resistant.
